| ขนาด: | 2400 มม. * 1500 * 800 มม. (ส * กว้าง * ลึก) | วัสดุ: | อลูมิเนียม สังกะสี |
|---|---|---|---|
| พื้นที่ภายใน: | แร็ค 48U ขนาด 2*19 นิ้ว | ประตู: | ประตูซ้ายหนึ่งบาน ประตูขวาหนึ่งบาน |
| วิธีการทำความเย็น: | เครื่องปรับอากาศ 2 * SS316 | เกรดไอพี: | IP65 |
| การติดตั้ง: | การติดตั้งพื้น | บรรจุุภัณฑ์: | กล่องไม้ |
| เน้น: | 48U outdoor telecom cabinet,dual-cabinet telecom power system,telecom cabinet with backup system |
||

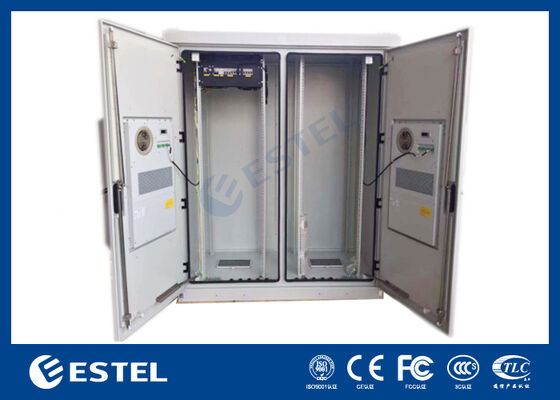

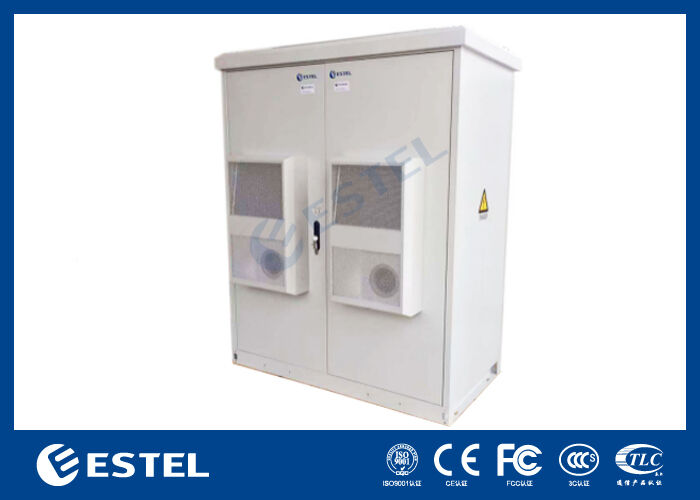

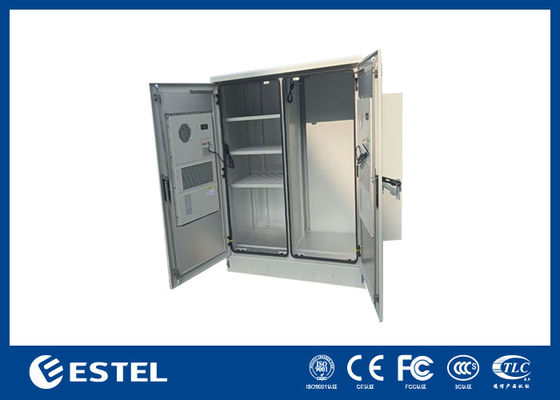

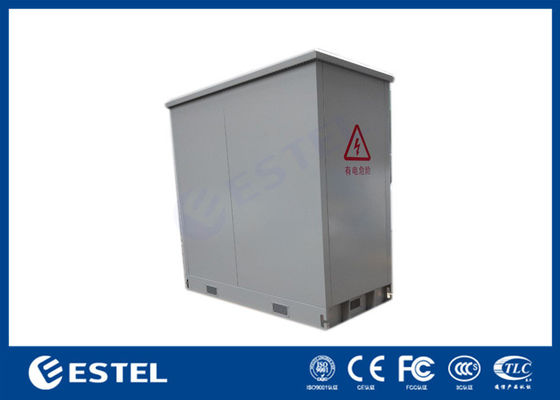

Outdoor Daul-cabinet 48U Telecom Cabinet with Power Distribution and Backup System
Product Overview
The ET Series Outdoor Daul-cabinet 48U Telecom Cabinet is an outdoor cabinet which can protect customer’s equipments from damage and extreme weather conditions. Lead-acid battery and 48U telecom equipments can be accomodated inside the cabinet. The cabinet can provide power for active telecom equipments and passive telecom equipment at the same time.
DC Power Distribution
The cabinet integrates a 19-inch 3U rack-mount -48VDC Power Distribution Unit (PDU) featuring:
2 x 2P 32A circuit breakers
2 x 2P 16A circuit breakers
4 x 2P 10A circuit breakers
This configuration enables flexible and protected power distribution to multiple telecom loads.
Battery Backup and FSU
Dedicated space accommodates 4 trays for up to 16 x 48V lead-acid batteries, providing reliable backup power during mains failures. The cabinet also supports FSU (Field Supervision Unit) and sensors for real-time monitoring of internal temperature, humidity, door access, smoke sensor, water sensor and equipment status.
Versatile Equipment Housing
The cabinet offers ample space for concurrent installation of 19 inches standard equipment, noth active telecom equipment (switches, transmission devices) and passive telecom equipment (distribution frames, patch panels), and telecom power system, making it a complete outdoor solution for critical network nodes.
Built with corrosion-resistant materials and high IP-rated sealing, the cabinet ensures reliable operation of power systems and communications equipment in extreme outdoor environments.
Features
Specification
| Configuration | Item | Technical Parameter | |
| Cabinet | Type | Outdoor Daul-cabinet 48U Telecom Cabinet | |
| Protection Level | IP65 | ||
| External Dimension | 2400mm*1500*800mm(H*W*D) | ||
| Internal Space | 1*19 inch 48U,1* 4-layer battery installation space | ||
| Material |
Material: Aluminum zinc plate, double layer, with 20mm PEF insulation outer layer thickness: 1.2mm, inner layer thickness: 0.8mm, load-bearing components and base thickness: 2.0mm |
||
| Coating | Polyester powder coating | ||
| Color | RAL7035 | ||
| Lock system | Anti-theft three-point locking system | ||
| Hinge | Inner hinge | ||
| Installation | Pole mounted | ||
| Cable Routing | Cable in and out from the bottom of cabinet | ||
| Maintenance | One left door, one right door, front maintenance | ||
| Cooling | Fan |
230VAC, 50Hz, 1000W, 2SET, Customized; Material: SUS316 |
|
| FSU |
Model: PM5000, 19" 1U Sensors: 2* door sensor 1* smoke sensor 1* water sensor 1* temperature sensor |
||
| DC Power Distribution Unit |
Rack mount -48VDC PDU, 19" 3U Circuit Breaker: 2 x 2P 32A ; 2 x 2P 16A; 4 x 2P 10A |
||
| LED Lamps | 230VAC,50Hz, used for illumination in the cabinet, with a B22/60W bulb | ||
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) | |
| Storage Temperature | -40℃~+70℃ | ||
| Working Humidity | 5%~95%(No condensation) | ||
| Working Altitude | 0~4000 meters | ||
| Package | Wooden case | 1 unit per case | |
