| โหมดอินพุต: | 3 เฟส 4 สาย + GND | แรงดันไฟฟ้า: | 380/400/415VAC |
|---|---|---|---|
| ช่วงความถี่: | ระบบ 50Hz:46-54Hz;ระบบ 60Hz:56-64Hz | ปัจจัยอำนาจ: | โหลด 0.99@100% |
| อินพุตฮาร์มอนิกปัจจุบัน: | ≤3% (โหลดที่ไม่ใช่เชิงเส้น 100%) | โหมดเอาต์พุต: | 3 เฟส 4 สาย + GND |
| เน้น: | 10-40kVA telecom UPS system,high reliability UPS with EPO,telecom power system with DSP |
||

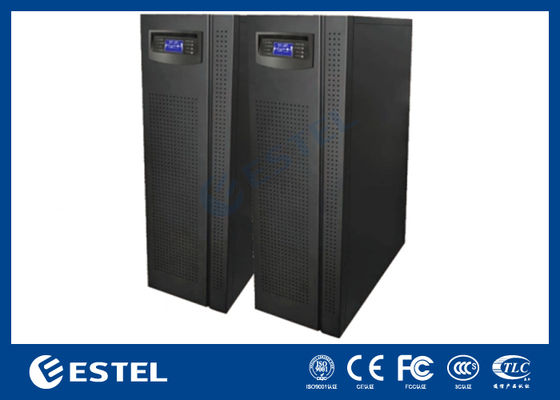

Uninterruptible Power Supply(UPS)
Product Overview
ESTEL 10-40kVA UPS series adopts advanced DSP digital control technology,it provides strong adaptability and supports flexible configuration,which fully meets the high reliability requirements of computer room servers and precision equipment.
Product Features
| UPS Capacity | 10KL | 15KL | 20KL | 30KL | 40KL | ||
| Rated Output Capacity | 10kVA/8kW | 15kVA/12kW | 20kVA/16kW | 30kVA/24kW | 40kVA/32kW | ||
|
ACInput |
Input Mode | 3-Phase,4-Wire+GND | |||||
| Rated Voltage | 380/400/415VAC | ||||||
| Voltage Range | |||||||
| Frequency Range | 50Hz system:46-54Hz;60Hz system:56-64Hz | ||||||
| Power Factor | 0.99@100%load | ||||||
| Input current harmonic | ≤3%(100%non-linear load) | ||||||
|
AC Output |
Output Mode | 3-Phase,4-Wire+GND | |||||
| Rated Voltage | 380/400/415VAC | ||||||
| Power Factor | 0.99@100%load | ||||||
| Voltage Accuracy | ±1% | ||||||
| Output Frequency | Synchronize with input;Battery mode:50Hz±0.1Hz or 60Hz±0.1Hz; | ||||||
| Peak Load Ratio | Max.3:1 | ||||||
| Output THD | ≤2%@100%linear load;≤5%@100%non-linear load; | ||||||
| Efficiency | AC Mode | >89% | >89% | >89% | >90% | >90% | |
| Battery Mode | >86% | >88% | >88% | >89% | >89% | ||
| Battery | Battery Voltage | ±192VDC/±216VDC/±240VDC(Optional) | |||||
| Charging Current | 4A | 4A | 4A | 12A | 12A | ||
| Switch Time |
Switch from mains mode to bypass mode:0ms (tracking);
Switch from mains mode to battery mode: 0ms; |
||||||
|
Protection |
albi | AC Mode | 100%-110%:30sec;110%-30%:10sec;>130%:1sec; | ||||
| Battery Mode | 100%-110%:30sec;110%-130%:10sec;>130%:1sec | ||||||
| Emergency Power Off(EPO) | Turn off output immediately | ||||||
| Communication | USB,RS232,SNMP card(Optional) | ||||||
|
Working Environment |
Working Temperature | 0°C to 40°C | |||||
| Relative Humidity | 0-95%(Non condensation) | ||||||
| Storage Temperature | -25°C to 55°C | ||||||
| Elevation | <1000m | ||||||
|
Physical Feature |
Size(D×W×H)(mm) | 570×250×575 | 570×250×575 | 570×250×575 | 780×250×826 | 780×250×826 | |
| Weight(kg) | 44 | 45 | 63 | 71 | 75 | ||
